DroneGun MkIII

Lightweight, Compact Drone Countermeasure

DroneGun MKIII

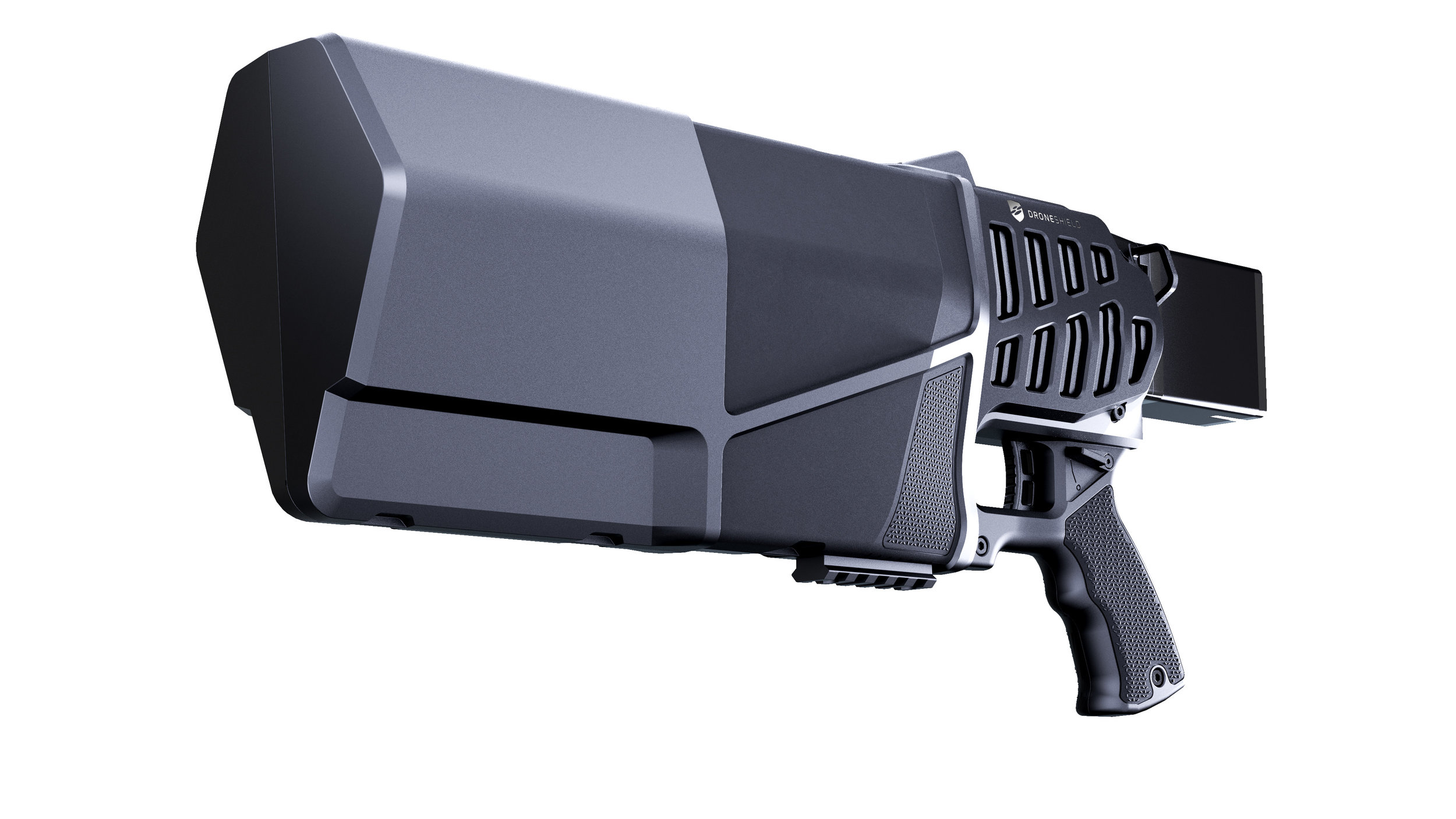

The DroneGun MkIII is a compact, lightweight drone countermeasure designed for one hand operation. The product provides a safe countermeasure against a wide range of drone models. It allows for a controlled management of drone payload such as explosives, with no damage to common drones models or surrounding environment due to the drones generally responding via a vertical controlled landing on the spot, or returning back to the starting point (assisting to track the operator), with an immediate cease of video back to the drone pilot.

RF disruption activation will also interfere with any live video streaming (FPV) back to the remote controller halting the collection of video footage and intelligence by the drone operator.



DroneShield DroneGun MKIII

Download Broshure PDF

Send nedlastningslink til

  • Lightweight: 2,14 kg total device weight including battery

  • Effective coverage: Allows for an up to 1km coverage, in a wide range of environmental conditions

  • Fully Integrated: Battery powered hand-gun style solution, one person operation

  • Easy to use: minimal technical training for set up or use required, highly portable design

  • Immediate video cease: immediately ceases video transmission back to the drone operator

  • Enables investigation: drone remains intact and available for forensic investigation

  • Additional Frequency Bands: Option to disrupt multiple RF frequency bands simultaneously (433MHz, 868 MHz(Optional),915MHz, 2.4GHz & 5.8GHz)

  • GNSS Disruption: Optional GNSS disruption capablity (GPS, GLONASS, BeiDou, Galileo)

  • Protected: Unit supplied packed in rugged carry case

DroneGun MkIII Specifications
Voltage: 10.8VDC
Effective Range: 1km (Visible Line of Sight)
Rifle Weight: 1.95kg (4.3 lbs) (including battery)

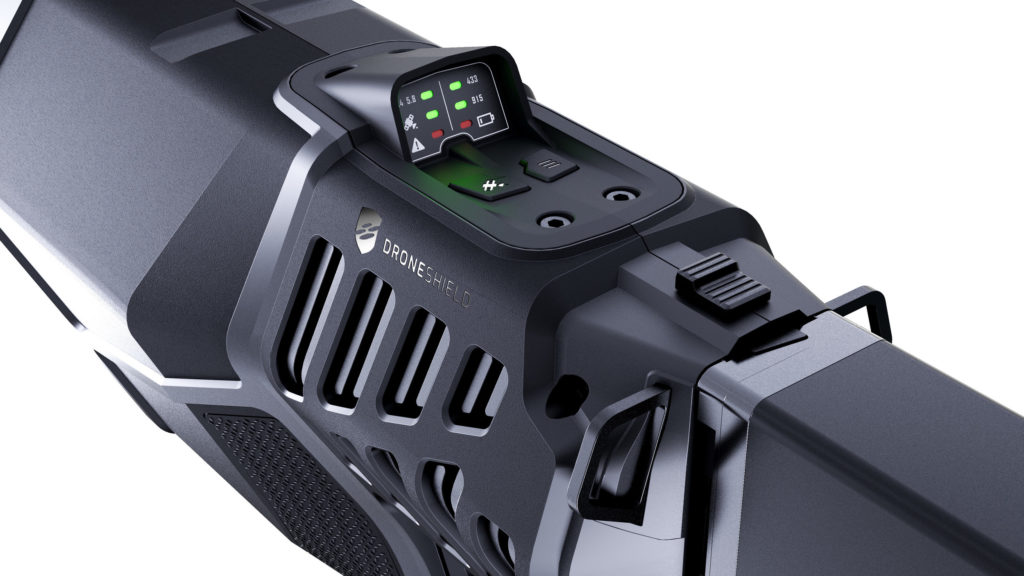

User Feedback: Visual LEDs
Colour: Black, Desert Sand

Effective Frequencies
433MHz (optional activation)
868Mhz (optional)
915MHz (optional activation)
GNSS L2 & GNSS L1 (optional activation)
2.4GHz ISM
5.8GHz ISM

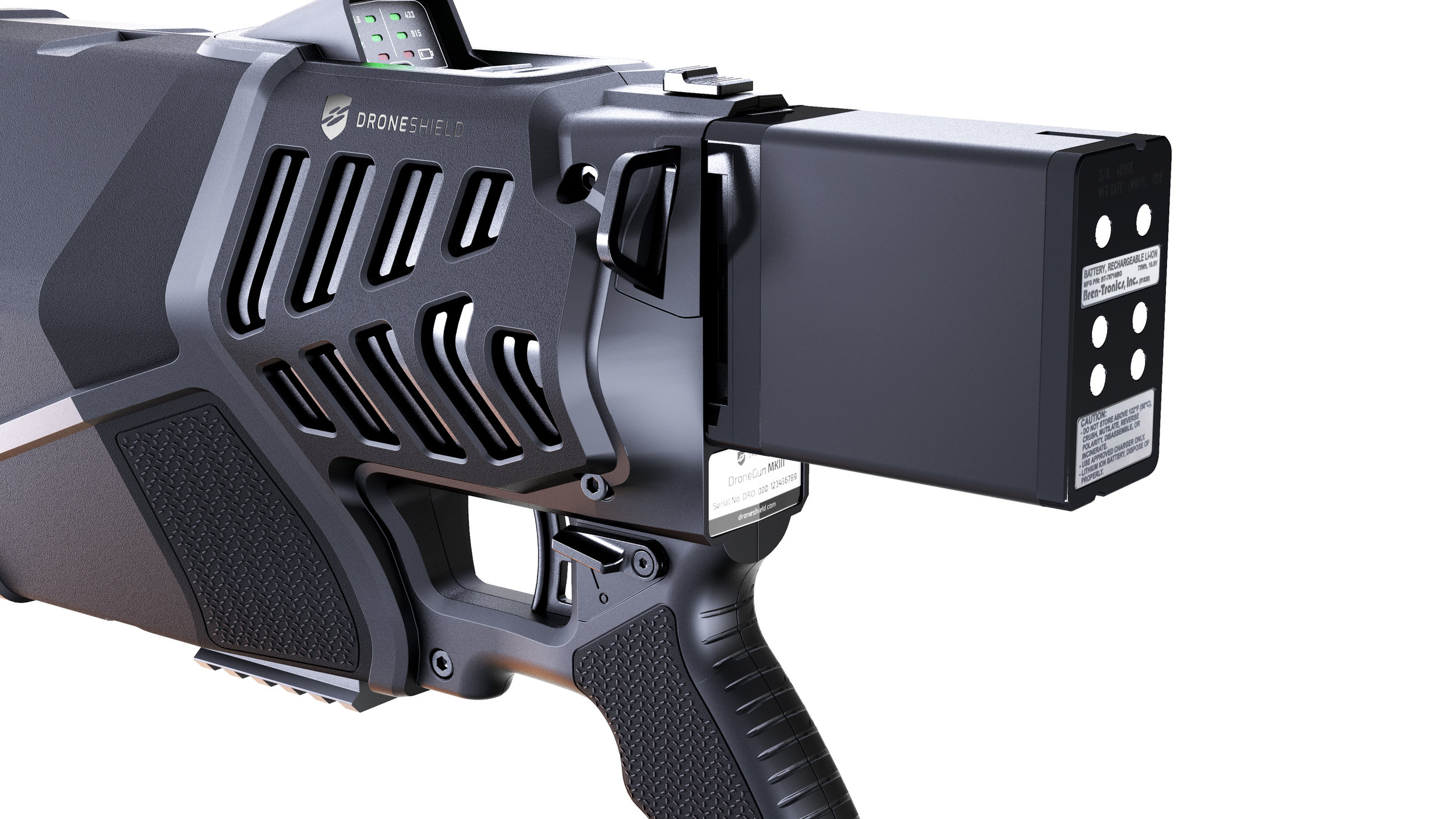

Battery Specifications
Rechargeable Lithium-Ion Battery
NATO-standard military grade battery (common use)
Quick release and reload battery operation
Start-up Time: < 3 secs
Operation Time: 1 hr+ active disruption
Pass through charger available for continued use

Environment
Operating temperature: -20 ºC to +55 °C (-4ºF to +131ºF)
Designed to IP55

Warranty
12 months from date of shipment

Shipping

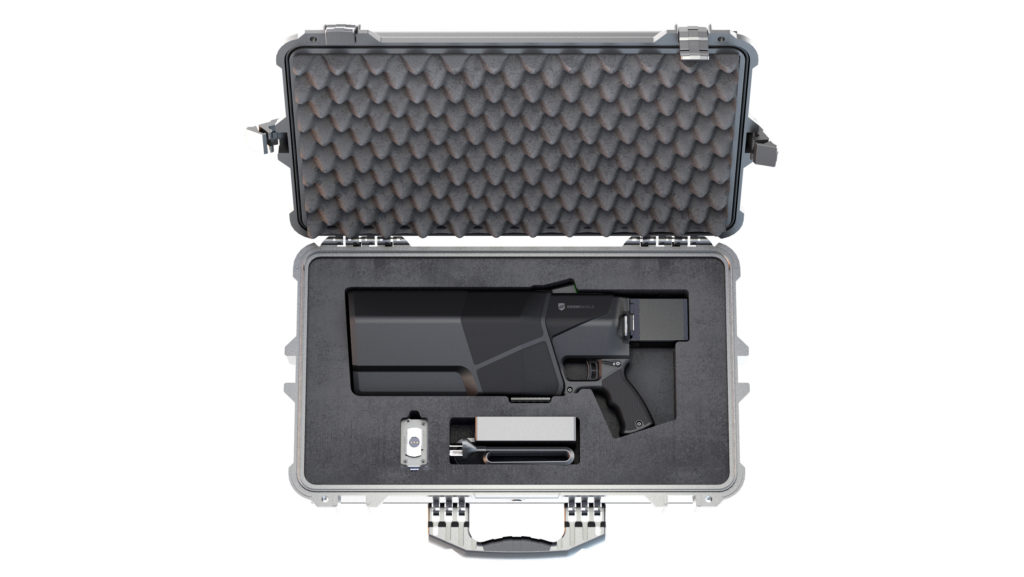

Ships in a Rugged Carry Case (IP67)
Dimensions: 629mm x 393mm x 209mm (24.76“ x 15.46“ x 8.24“)
Total Shipped Weight: 7.4kg (16.3 lbs) – including carry case
HS Code: 8543.70.9090
