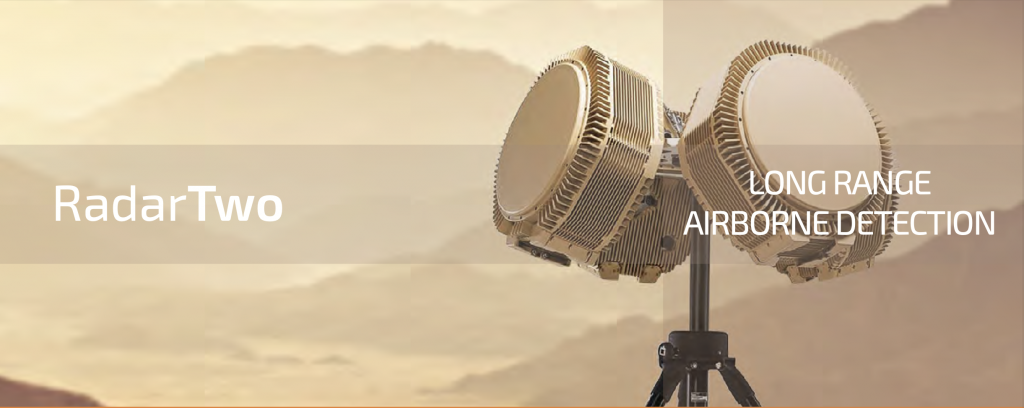

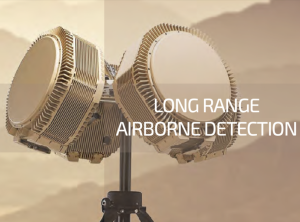

RadarTwo has been designed specifically to provide long range aerial detection and tracking of airborne targets.
With a range of up to 3.5km for Nano UAV, RadarTwo provides exceptional detection for drones providing early warning system, giving operators time to alert and respond.
RadarTwo is the ideal detection solution for large sites that require early detection and tracking of small to medium drones.

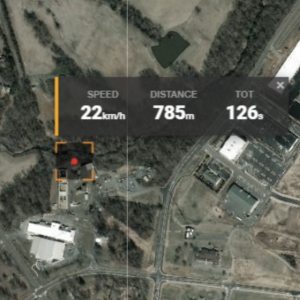

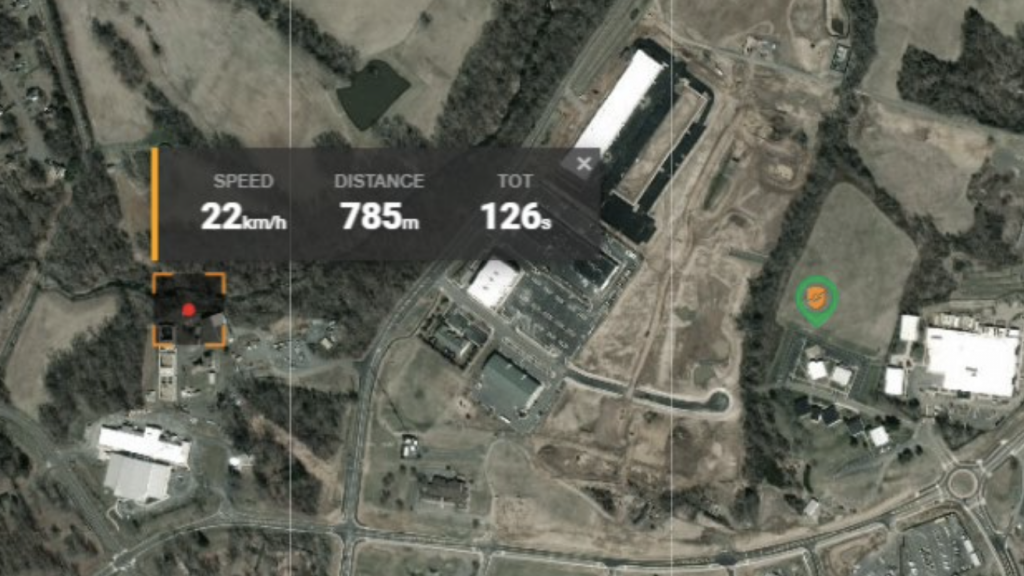

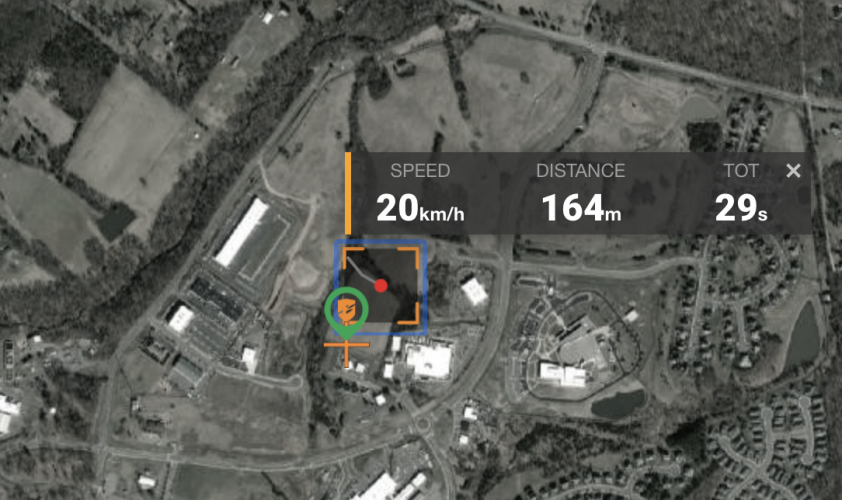

- Long Range Tracking: Accurate tracking of airborne targets at ranges up to 3.5km (Nano UAV) and 15km (Medium UAV)

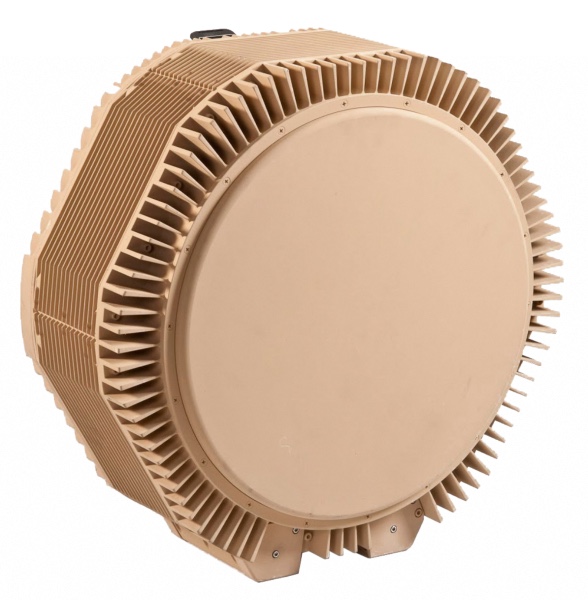

- Ruggedised: Reinforced construction ensures long term reliability in harsh environmental conditions
- High Coverage: RadarTwo covers 90° in Azimuth and 80° in Elevation. The units can be up tilted to ensure target acquisition and tracking.
- Sensor Fusion: RadarTwo seamlessly integrates with other DroneShield detection technologies such as RF and Optical sensors. DroneShield Complete GUI allows operators to monitor multiple sensors, sites and threats using a simple, modern interface.
Performance
Airborne target detection up to 3.5km (nano UAV)
Field of View: ≥90° Azimuth x 80° Elevation
Angle Resolution: ±0.5o Azimuth x ±0.5o Elevation
Output Options
IP-Based alerts (email, SMS,XML) indicating Zone detected
Operators real time GUI (Graphical User Interface)
Specifications

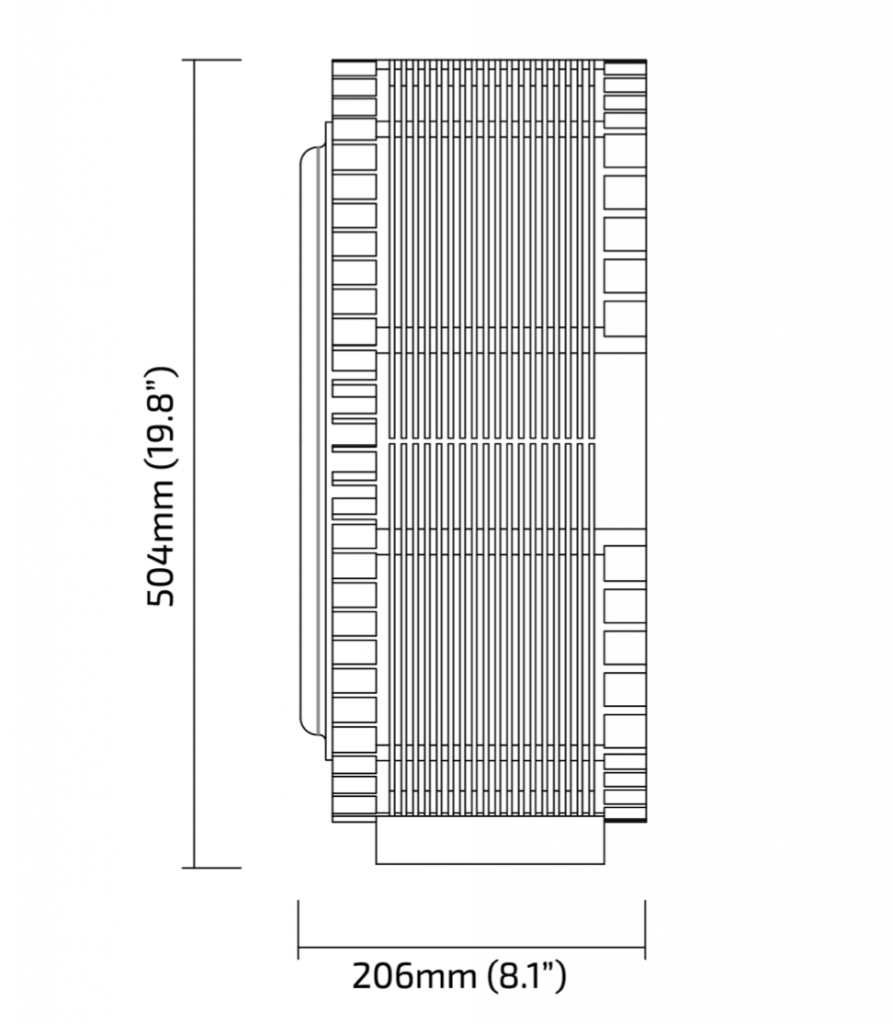

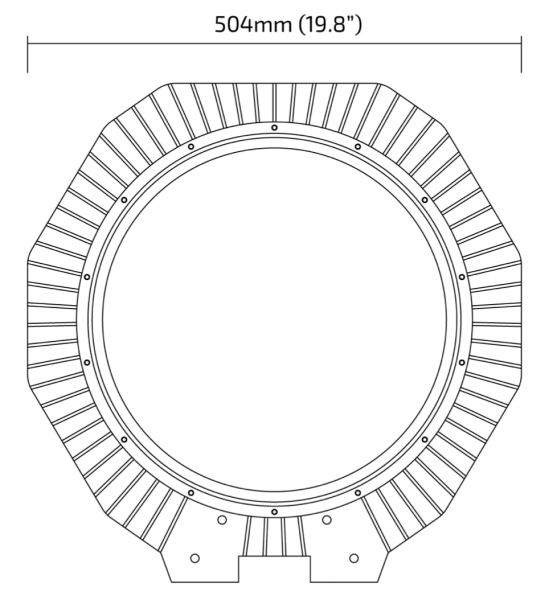

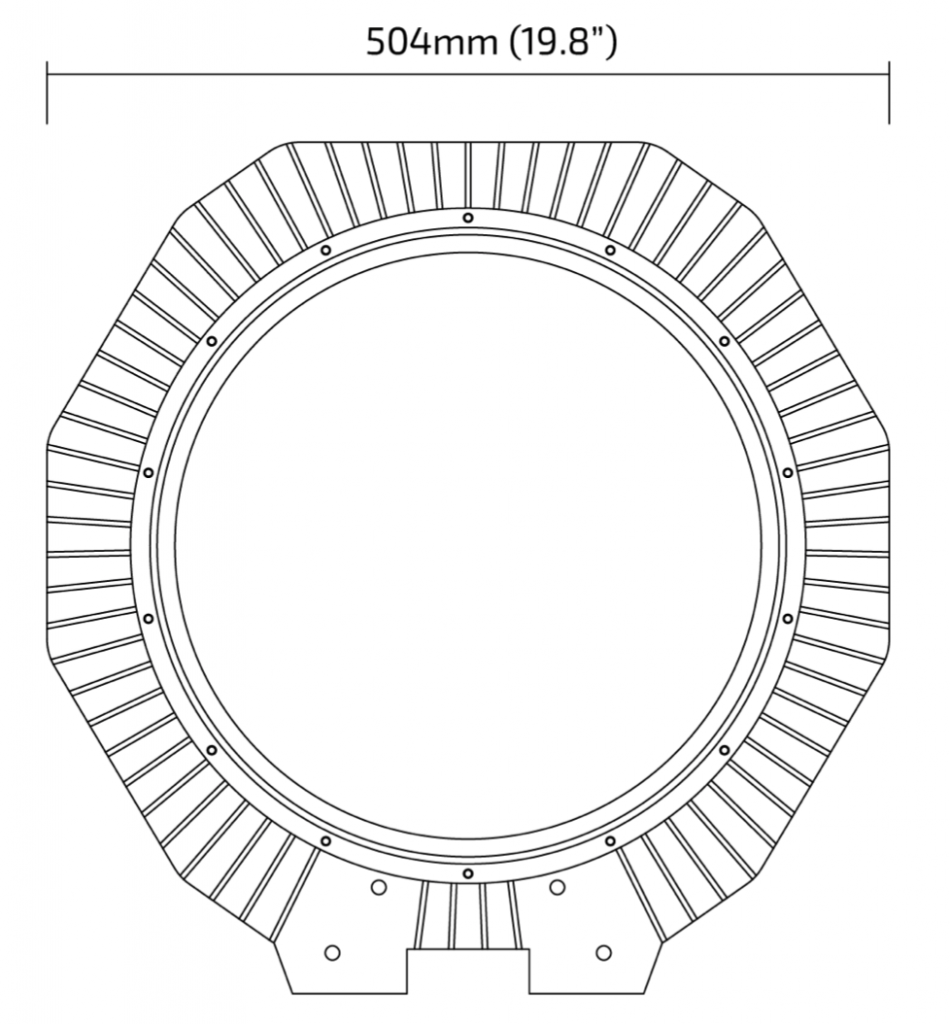

Diameter: 504mm (19.8“)
Depth: 206mm (8.1“)
Weight: 23kg per panel (50.7lbs)
Power and Communications
Input power: 28V Nominal (16V to 32V, per MIL-STD-1275) Power Consumption: 320W per panel
Transmitting Power: 60W per panel
Interfaces: Gigabit ethernet, discretes, serial channels
Environment and Installation
Operating Temperature range: -40°C to +55°C (-40°F to +131°F)
Tower, mast, or tripod mountable
Maintenance
Annual manual inspection
Bi-annual vent membrane inspection
Shipping
HS Code: 85261000
