Wearable Detection
Integrated Software Defined Radio capability for compact application. Detects both custom protocol and WiFi RF links.
Robust Design
Housing constructed from aluminum for increased durability. Environmental protection for extended use in harsh environments
Operationally Effective
Optimized power consumption for extended operation. Quick release & reload battery operation, NATO military grade battery.
Integrated Directional Antennas
Supplied with omni-directional ISM band antenna. No intentional RF transmissions for quiet & safe wearable operation. Additional antenna ports available for capability expansion
Device Manager UI
Device Manager software update tool allows for capability expansion and access to detection logs.
Integration
Supports integration into existing soldier battle management systems via existing API (available through JSON and gRPC) utilizing net warrior compliant hardware.

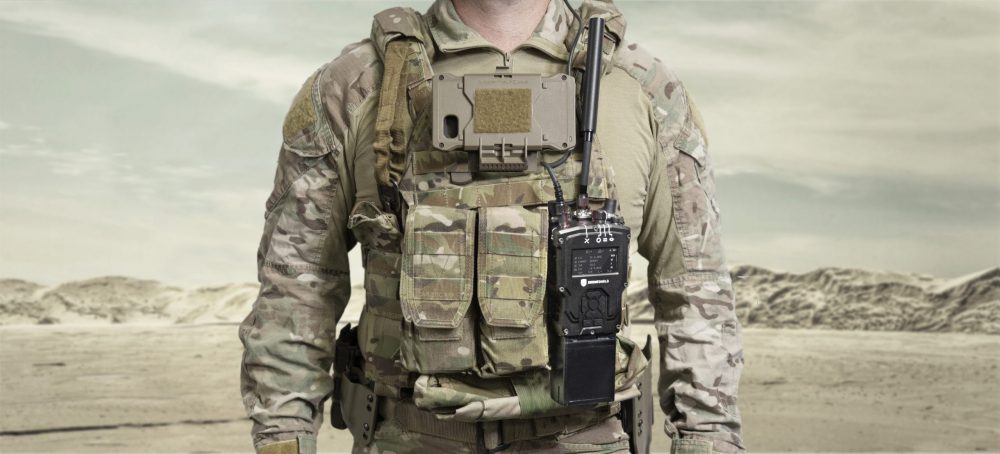

RfPatrol is a highly versatile, completely passive/non-emitting wearable UAS detection device. The device offers the user real situational awareness without distraction or complex operation. It has been designed to be highly effective for a variety of operators in a range of demanding environments. The RfPatrol device automatically detects drones moving at any speed.
The RfPatrol can be operated in two modes, ‘Stealth’ and ‘Glimpse’, allowing the user to control how they receive alerts.
The device is supported by easy to install, remote updates that allow the operator to keep their devices database up to date with the changing threat environment
DroneShield RfPatrol MKII
Send nedlastningslink til
- Effective Coverage: Detects a wide variety of UAS and remote controllers
- Passive Device: No intentional RF emissions and no decryption of wireless protocols for quiet and safe operation
- Additional Frequency Bands: Additional hardware and software upgrade path for capability expansion
- DroneShield Advanced Technology : Device powered by DroneShield latest SDR scanning technology
- Bigger Picture: Data feed output to Battle Management System (custom as required)
- Integration: Supports integration into existing soldier battle management systems via existing API (available through JSON and gRPC) utilising net warrior compliant hardware
RfPatrol
Unit Weight: 800g (1.76lbs)
User Feedback: Visual, Haptic, Audible
Dimensions: 156.8 x 92 x 48.8mm (6.17“ x 3.62“ x 1.92“)
(excluding antenna’s & attachable battery)
Battery & Power
Rechargeable Lithium-Ion Battery, Quick release and reload battery
Common NATO-standard military grade battery
Battery Nominal Voltage: 10.8VDC
Battery Weight: 380g (0.83lbs)
Battery Dimensions: 71mm x 41mm x 86mm (2.8“ x 1.6“ x 3.4“)
Operating Time: 10 hrs+ (continuous operation)
Pass through charger available for extended use
Operating temperature: -30ºC to +60ºC (-22ºF to +140ºF)
Environment
Operating temperature: -20º to +60º C (-4ºF to +140ºF)
Designed to IP67
Warranty
12 months from date of shipment
Longer warranty available on request
Shipping

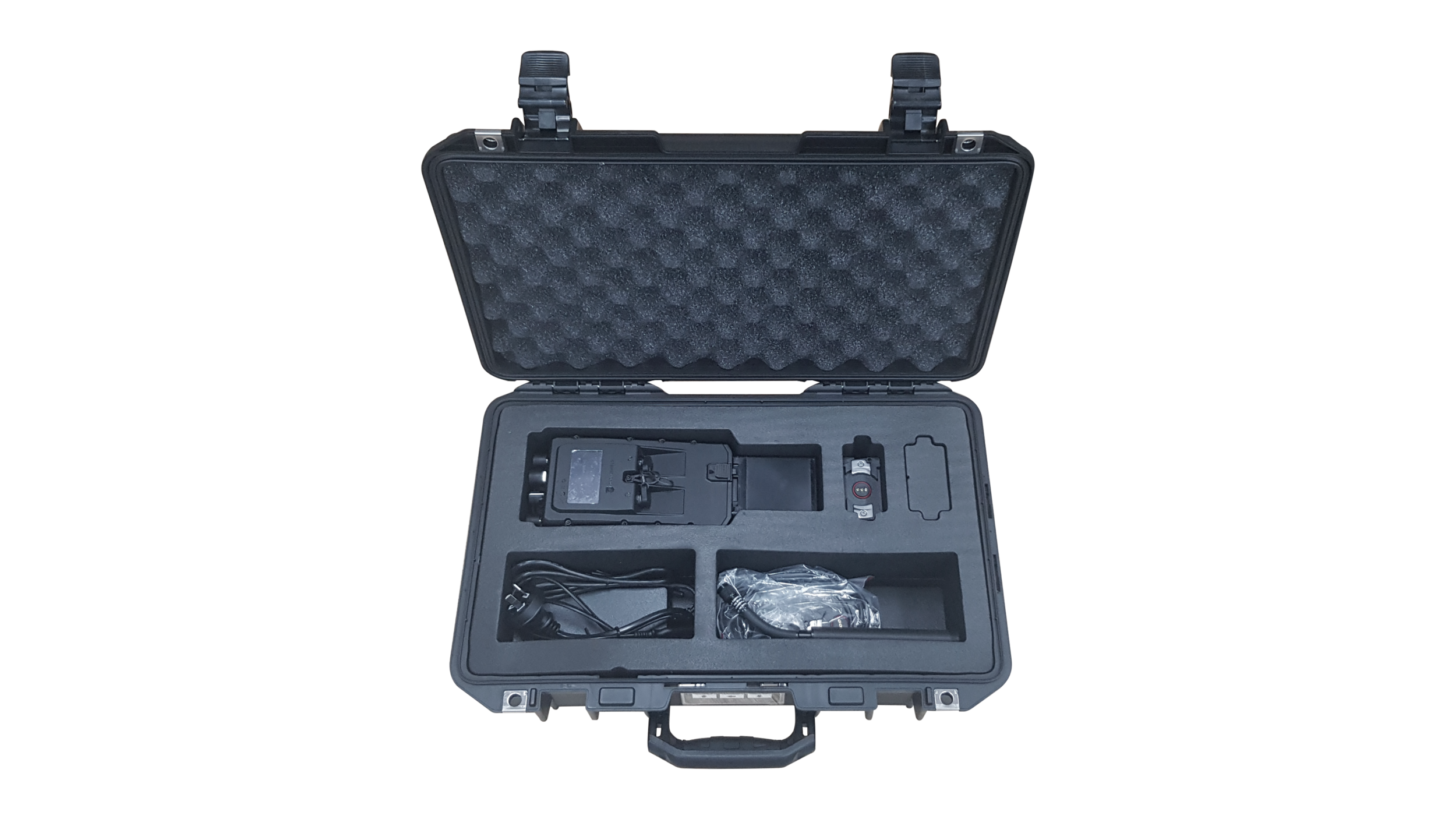

Ships in a Rugged Carry Case (IP67)
Carry Case Dimensions: 525 x 430 x 215mm (20.6“ x 16.9“ x 8.4“)
HS Code: 85269130
